Ignition Switch 925-04228 Fit for Cub Cad et Mower - 3 Position Key Switch Compatible with Cad RZT-42 RZT-50 RZT-54 Riding Mower, Troy-Bilt Mustang XP 42 50 54 Zero Turn Mower, Replace 725-04228 (Promotion Code: 20GUXYAX)
Fulfilled by Amazon
$17.55
Product description
1. The ignition starter switch is compatible with ①Cub Cad et RZT-17, RZT-L42, RZT-L46, RZT-L50, RZT-L54, Tank L-48, Tank L-54, Tank L-60, Z-Force L48, Z-Force L54, Z-Force L60, ②Troy-Bilt Colt XP, Mustang 42 XP, 46 XP, 50 XP, 54 XP, Z42, Mustang Z46, ③Craftsman Z6000, Z6400, Z6600, ZTL7000, ZTL8000, ④JD 1023E, 1025R, 1026R, 3032E, etc lawn mower.
2. Replaces OEM part numbers ①Cub Cad et/MTD/Troy-Bilt 725-04228, 925-04228, ②JD AM13359, AM133596, AM122881, AM132808, ③AYP/Roper/Sears/Craftsman 175567, AYP/HU/Craftsman 583070001, ④Others: Bad Boy 077-8076-00, Delta 6900-37M, etc. Please check the original part number and make sure this part fit your model before purchase.

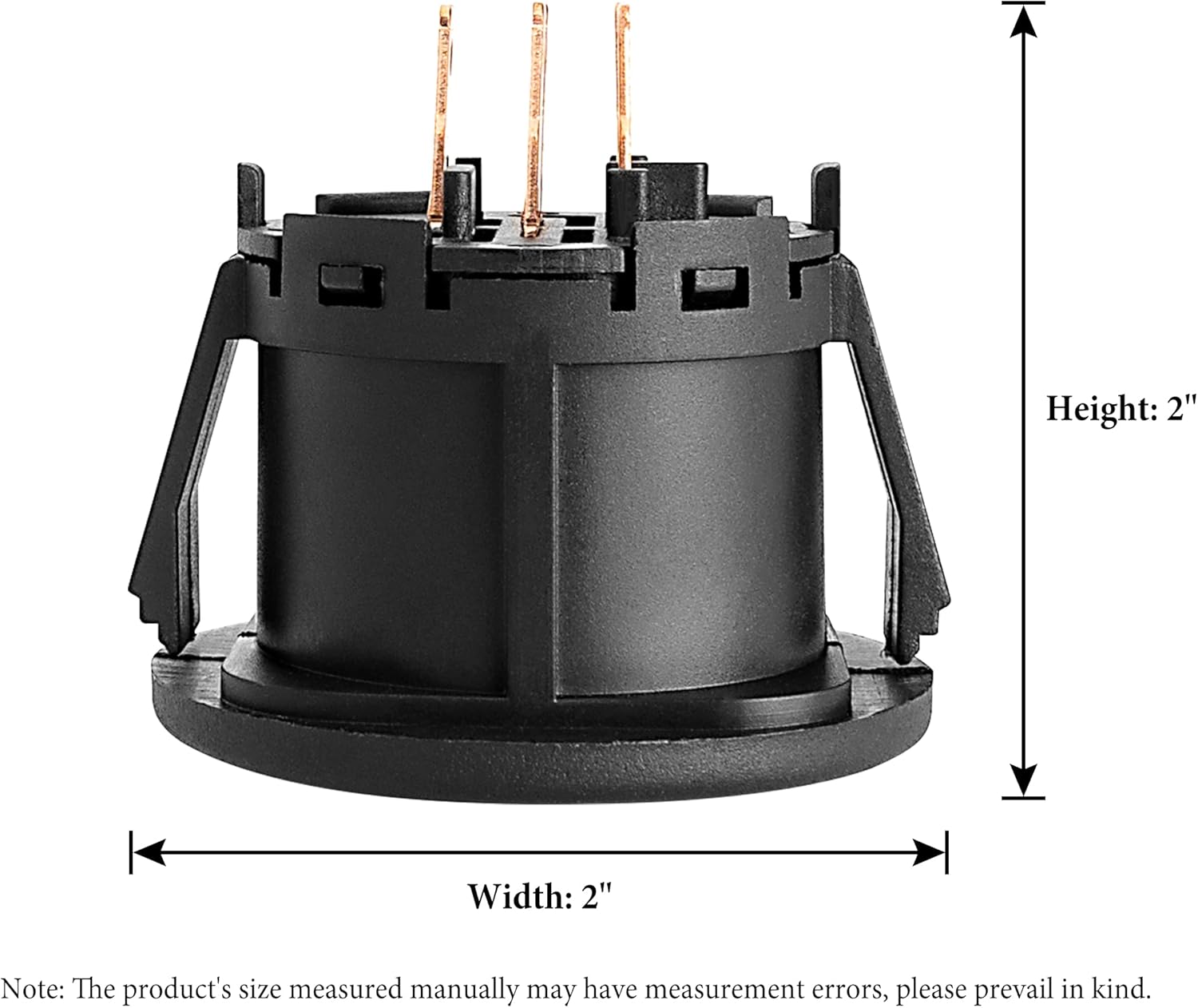

3. The generic ignition switch is ideal for many different brands of mowers with 3 positions and 5 terminals. The positions from left to right (turning key clockwise) refer to stop, run/on and crank.
4. The mower key switch is in plug and play design for easier installation. First disconnect the wire connector, then remove the old switch from the housing. Connect the wire connector to the new ignition switch, align the switch on the steering housing and snap it into place.
5. The package includes 1 ignition switch, 2 keys, 1 free carabiner.
